Specifications:
Name: Pure sine power inverter
Input voltage: DC 12V
Input Voltage range: DC 10.5V to 15V
(When the battery voltage is lower than 10.5V, the inverter is low voltage protection, when the battery voltage is higher than 15V, the inverter high voltage protection)
Output voltage: AC 110V /220V for your choice
Output frequency: 50Hz for 220V model /60Hz for 110V model
Peaks Power: 2000W
Rated power: 1000W
Maximum Active Surge Rating (less than 1 second) : 2000W
Output Waveform: True/pure sine (<3% THD)
Output waveform: Pure sine .
Efficiency: 90≥%
No Load Current Draw (DC side) <0.6 A
Product size: 18.6X16.7X7cm
Package Size: 22.5x21x11cm
Net Weight:1.0kg
Gross Weight: 1.3kg
10 Safety Protection Function:
① Over-current protection
② Polarity protection
③ Internal fuses
④ Battery Low voltage Warnings
⑤ Over temperature protection
⑥ Hidden anti drop terminal
⑦ Low input voltage protection
⑧ High input voltage protection
⑨ Short circuit protection
⑩ Overload protection
⑪ Buzzer alarm reminder protection
Application suggestion:
-Applicable Loads for Rated Power under continuous of inverter:
5W-Cell phone
5W-Breast pump
10W-Digital Electronics(Ipad/Car navigation/Digital camera)
10W-Game console
5W-10W Electric shaver
20W-LED Lamp
25W-Walkie talkie
50-100W Laptop
60W-Compact Fluorescent Lamp
60W-Incandescent lamp
60W-Mechanical Electric9 Fan
60W-150W TV
80W-VCR
200W-Desktop Computer
500W-Hair dryer
300W-Audio Amplifier
350W-Non-laser Printer
700W-Vacuum cleaner
500W-Electric iron
500W-Washing machine
140W-Range hood
100W-Refrigerator
100W-Electric fan
350W-Electric rice cooker
Note:
①Please Ensure the Rated Power is higher than the electric appliance you wanna apply to. We recommend you buy a larger model than you think you'll need (at least 10% to 20% more than your largest load).
②And if you wanna run several appliance at the same time, you should refer to the total Watt.
③If you wanna run a inductive load for a long time, it`s suggested to buy a pure sine wave inverter.
Features:
- 12V is generally for cars, 24V for trucks, 48V and 60V is generally for electric vehicles.
- Available Range Of Rated Voltage Of Electrical Appliances : 200~240V, 100~120V
- The Safe Range Of this inverter Input Voltage:12V (10V~15V)
Caution!
-1.This is a Dc to Ac Inverter,Pure sine inverter, NOT applicable for devices which work by built-in motor, hair dryers,air conditioners, coffee machine,water pump, induction cooker,refrigerators and microwave ovens etc.Make sure that the total rated power of the connected devices is ≤ 1000W
-2.Tighten the Positive (+) and Negative (-) terminals when the car converter is in use
-3.If the converter is directly connected with the cigarette lighter. The highest out put power must be under 150W. If higher than 150W,we strongly recommend you using the Crocodile Clips to a battery ,because car cigarette lighter might not afford power over 150W.
-4.The car converter suitable for DC12V and Car ONLY, not applied for DC 24V and airplane
-5.Please do not leave the inverter in the ON position before car start.It's easy to damage the inverter before connected to the battery.The correct operation is connect to the battery first and then turn on the inverter switch
-6. It's normal for the inverter to become warm while you are using it.In order to get the best using results, please put the inverter on the flat surface The working place should meet the following criteria:
1. Keep dry, should not let the inverter contact the water or other liquids, keep the inverter away from moisture or water.
2. Cool environment, keep the temperature between 0 Celsius degrees and 40 Celsius degrees. Do not put the inverter next to heat vents or other devices. Try to keep the inverter not be shined directly by the sunshine.

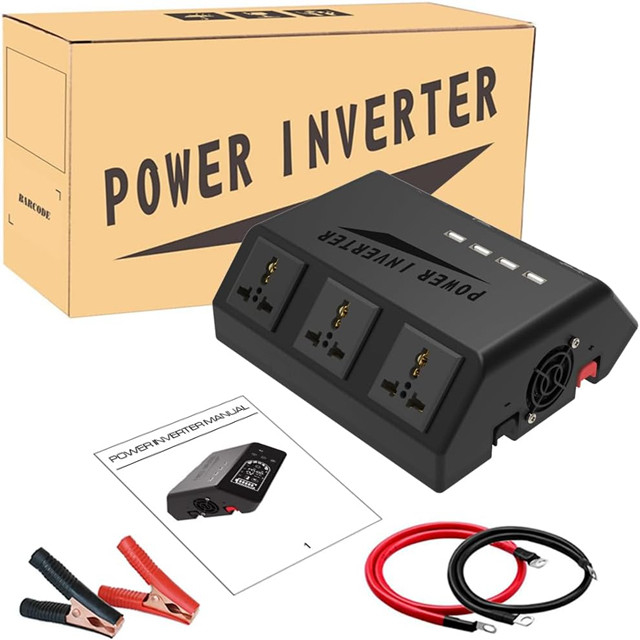

7 Units Wide application at same time:The power inverter comes with 4 USB ports and 3 AC outlet. Within the power range of the inverter, it is more efficient and convenient, support 7 electrical appliances used simultaneously. Widely used in camping, road trips, outdoor work,power failure, etc. Universal standard 220V/110V AC power outlets can better connect multiple appliances.
Smart Touch LCD Display:The inverter has the micro-control unit LCD realizes the exchange of human-machine information, and can know the working status of the inverter in real time, including show real time of input voltage, output voltage, output frequency, battery power, load, Power on/off indicator and other information.
Stable and Durable for new designs: Unique trapezoidal appearanc and new designs hidden terminals blocks protect the inverter from dropping and damaging the wiring terminals, prevents children from touching it. It is combined with an intelligent fan and a large grille ventilation opening to form convection in the inverter interior space, ensuring safe and effective heat dissipation and efficient operation of the inverter.
Multi Protection: Built-in fuses, safe charging design and cooling fan prevents the power inverter from over-heat,saving power and energy.over voltage, overload, over-current, short circuiting, under-voltage, overheating, short circuit protection.
Fast Charging 4 USB ports : three AC Outlets and four usb ports can offer 100% fast charging for Mobile phones, computers, laptop,breast pump, Nebulizer, Razors,medical rescue device,emergency device etc,can be as a Emergency Power . USB ports can charge most phones and tablets simultaneously (3.6A, Max 4.2A ), while AC outlets great for laptop, drone, fan, camera, CPAP machine, game console, kindle, TV, DVD players, lights, RV,and other electronic devices.
